Cellular Band RF Bi-Directional Amplifiers (RF-BDA)

In-Building Repeaters



Direct-attach bi-directional amplifiers (for in-building and vehicle/mobile use)

wireless mobile amplifiers

distributed antenna systems



Cellular Band Antennas

  Amplifier Selector/ Coverage Estimator
low-loss coaxial cables ultra low loss but inflexible use for long runs ~ 5.824 dB/100ft @1.9GHz Cable Attenuation Calculator   Passive Components Filters, splitters, diplexers, attenuators, power combiners etc.   Lightning Protection
  Top



Cellular Amplifiers/ Repeaters



Image Brief Description Links & E-Store SKU
In-Building Repeaters
700MHz LTE Repeater Amplifier

In-Building 700 MHz LTE Wireless 70dB Repeater Amplifier

Works with Verizon 4G LTE.

Frequency Range Uplink: 776-787 MHz
Downlink: 746-757 MHz
Amplifier Gain 70dB (75dB Max)
Max RF Output 3W EIRP
Noise Figure 5dB
Input impedance 50Ω
Size(inches) 6"x4"x2"
Weight 1.5lb
Cable/ Connector N-Female (cable sold separately)
Power Consumption <9W
Power Supply 110 VAC, 60Hz (includes AC/DC power brick to convert to 9VDC)

Top

CM700V-70

LTE Antennas

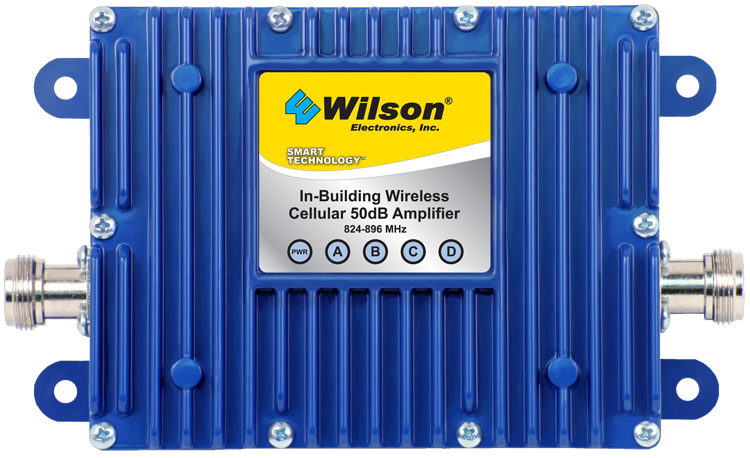

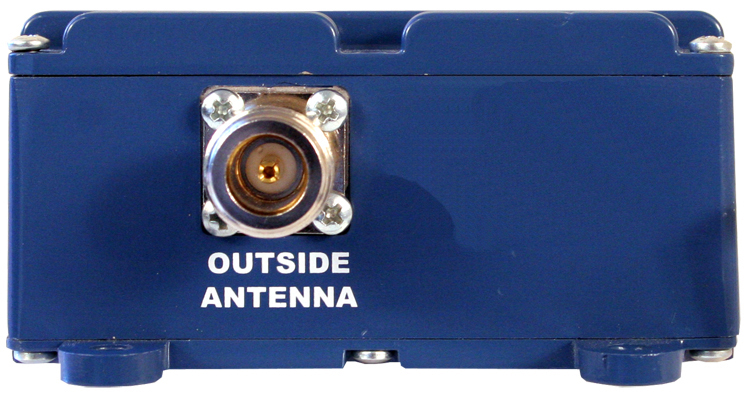

In-Building 800 MHz Wireless 50dB Amplifier

Works on CDMA, GSM & 3G networks. Requires outdoor antenna, indoor antenna and cables.

Frequency Range 824-849 MHz/
869-894MHz
Amplifier Gain 50dB max Info
Max Output Power 35dBm
Max RF 30dBm (Uplink & Downlink)
Noise Figure 3dB
Gain Flatness +/- 2.5dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 5.6"x3.6"x1.7"
Weight 1.5lb
Cable/ Connector N-Female (cable sold separately)
Power Supply 120 VAC/ 3 A max (includes AC/DC power brick to convert to 6VDC)

- NB. Requires a 40ft separation between the outdoor antenna and indoor antenna to prevent oscillations

Top

Buy 801105

Install Guide

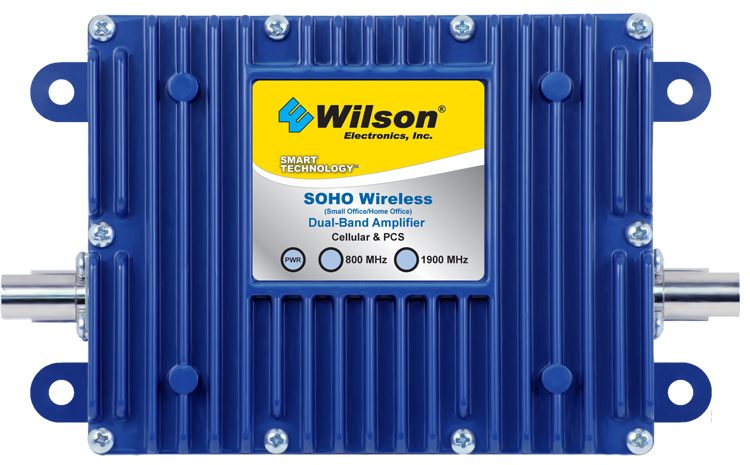

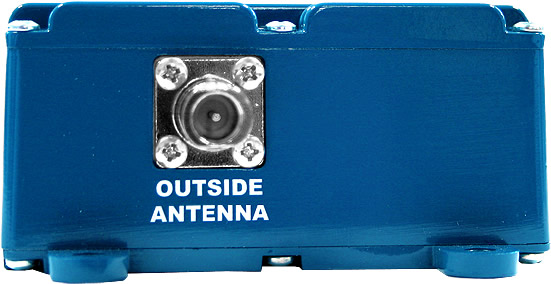

In-Building Dualband 800/1900 MHz Wireless 50dB Amplifier

Works on CDMA, GSM & 3G networks. Requires outdoor antenna, indoor antenna and cables.

Frequency Range 824-894 MHz/
1850-1990 MHz (Cellular & PCS band)
Amplifier Gain 50dB max Info
Max Output Power 30dBm
Max RF 30dBm Uplink &
10dBm Downlink
Noise Figure 3dB @ 800MHz,
4dB @ 1900MHz
Gain Flatness +/- 2.5dB
Isolation > 90dB (uplink/ downlink)
Receiver Sensitivity -110 dBm for CDMA @ 1% Frame-Error Rate (FER)
Input impedance 50Ω
Size(inches) 5.6"x3.6"x1.7"
Weight 1.5lb
Cable/ Connector FME-Male (cable sold separately) Includes 2 N-Female/FME-Female connectors
Power Supply 120 VAC/ 3 A max (includes AC/DC power brick to convert to 6VDC)

- NB. Requires a 25ft separation between the outdoor antenna and indoor antenna to prevent oscillations

Top

Buy 801245

Install Guide



In-Building 800 MHz Wireless 60/65dB Amplifier

Works on CDMA, GSM & 3G networks. Requires outdoor antenna, indoor antenna and cables.

Frequency Range 824-894 MHz
Amplifier Gain P/N: 801106 60dB max
P/N: 801165 65dB max
Max Output Power 35dBm
Max RF 30dBm (Uplink & Downlink)
Noise Figure 3-4dB typical
Gain Flatness +/- 2.5dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 5.6"x3.6"x1.7"
Weight 1.5lb
Cable/ Connector N-Female (cable sold separately)
Power Supply Input: 100-240 V AC 50/60 Hz 0.6 A / Output: 6 V DC 3 A

- NB. Requires a 50-75ft separation between the outdoor antenna and indoor antenna to prevent oscillations

Top

Buy 801106

Buy 801365

801106 Manual

801165 Manual

Drawings

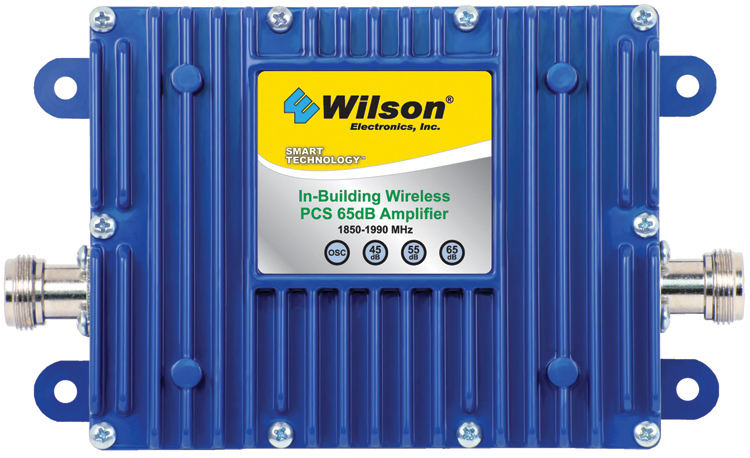

In-Building 1900 MHz (PCS) Wireless 60/65dB Amplifier

Works on CDMA, GSM & 3G networks. Requires outdoor antenna, indoor antenna and cables.

Frequency Range 1850-1990 MHz
Amplifier Gain P/N: 801306 60dB max
P/N: 801365 65dB max
Max Output Power 33dBm
Max RF 25dBm (Uplink & Downlink)
Noise Figure 4dB nominal
Gain Flatness +/- 4dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 5.6"x3.6"x1.7"
Weight 1.5lb
Cable/ Connector N-Female (cable sold separately)
Power Supply Input: 100-240 V AC 50/60 Hz 0.6 A / Output: 6 V DC 3 A

- NB. Requires a 50-75ft separation between the outdoor antenna and indoor antenna to prevent oscillations

Top

Buy 801306

Buy 801365

801306 Manual

801365 Manual

Drawings

CM2100-62AWS: Cellphone-Mate 62dB Full AWS (1710-1755, 2110-2155MHz) In-Building Repeater

In-Building AWS Band Wireless Repeater

Finally a repeater that works with T-Mobile 3G/4G AWS band operating at 1700/2100 MHz.

Frequency Range 1710-1755 / 2110-2155 MHz
Amplifier Gain 62dB max
Max Output Power 33dBm
Power Dissipation < 10W
Input impedance 50Ω
Size(inches) 7" x 4.8" x 1.2"
Cable/ Connector N-Female (cable sold separately)
Power Supply Input: 100-240 V AC 50/60 Hz 0.6 A / Output: 6 VDC

- NB. Requires a 50-75ft separation between the outdoor antenna and indoor antenna to prevent oscillations

Top

Buy Repeater

Buy Yagi

Buy Omni

Buy Dome

Buy LMR-400

801280 Dualband in-building cellular repeater

In-Building AG Pro 75 Dual-Band 850MHz/ 1900 MHz Wireless 70/75dB Amplifier (801280)

Works on CDMA, GSM & 3G networks. Requires outdoor antenna, indoor antenna and cables.

Frequency Range 824-894 MHz
1850-1990 MHz
Gain 70dB @ 850 MHz
75dB @ 1900 MHz
Power out for single device (uplink) 30.8 dBm / 30.5 dBm
Power out for single RX CH (downlink)

26.0 dBm / 25.2 dBm

Noise Figure 3.5 dB nominal
Isolation > 90 dB
Power Requirements

110-240 V AC, 50-60 Hz, 8 W

Input impedance 50Ω
Size(inches) 5.7" x 4.2" x 1.5"
Weight 0.5lb
Cable/ Connector N-Female (cables sold separately)



Top

Buy 801280

801280 Manual

Direct-Attach Amplifiers (for buildings & vehicles)

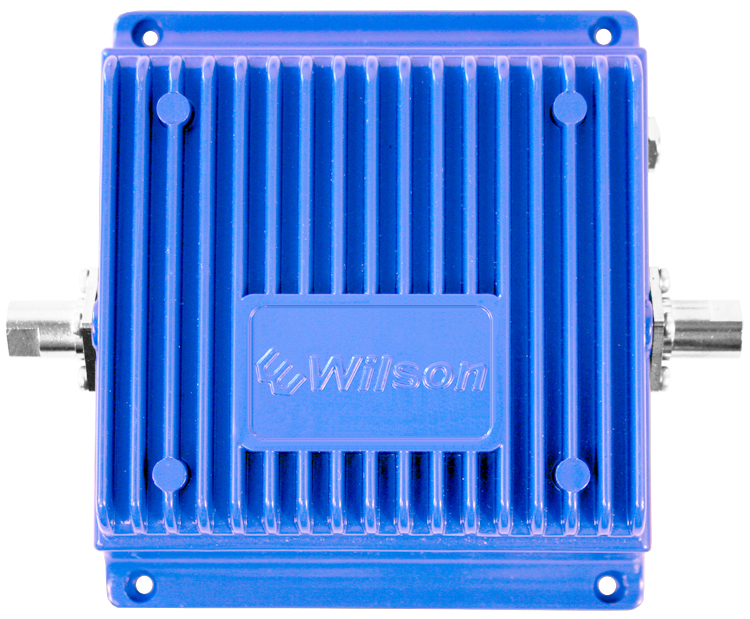

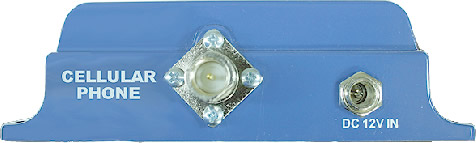

Direct Connect Dual-Band 800/1900MHz Amplifier

Works on CDMA, GSM & 3G networks. Can use in vehicles, boats and in-building

Frequency Range 824-894 MHz/
1850-1990 MHz
Amplifier Gain 10dB @ 800MHz
14dB @ 1900MHz Info
Max Output Power 3 Watts
Max RF 35dBm Uplink &
15dBm Downlink
Noise Figure 3.5dB nominal
Gain Flatness +/- 2dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 5"x3.5"x1.2"
Weight 1.03lb
Cable/ Connector FME-Male (cable sold separately)
Power Supply 12V, 0.5-1.5A max

Top

Buy 811201

Install Guide

cellular amplifier power brick

12V AC/DC

Drawings



Direct Connect 900/2100MHz Amplifier

Works on European/Asian International 900MHz GSM and 2100MHz UMTS 3G Frequencies. NOT COMPATIBLE with N. American frequencies. NOT COMPATIBLE with T-Mobile AWS Frequency.

Frequency Range 900 MHz/ 2100 MHz
Amplifier Gain 10dB @ 900MHz
14dB @ 2100MHz Info
Max Output Power 3 Watts
Max RF 15dBm Uplink &
15dBm Downlink
Noise Figure 3.5dB nominal
Gain Flatness +/- 2dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 5"x3.5"x1.2"
Weight 1.03lb
Cable/ Connector FME-Male (cable sold separately)
Power Supply 12V, 0.5-1.5A max

Top

Buy 811901

cellular amplifier power brick

12V AC/DC

Drawings

Wireless Mobile Amplifiers (for Vehicles)

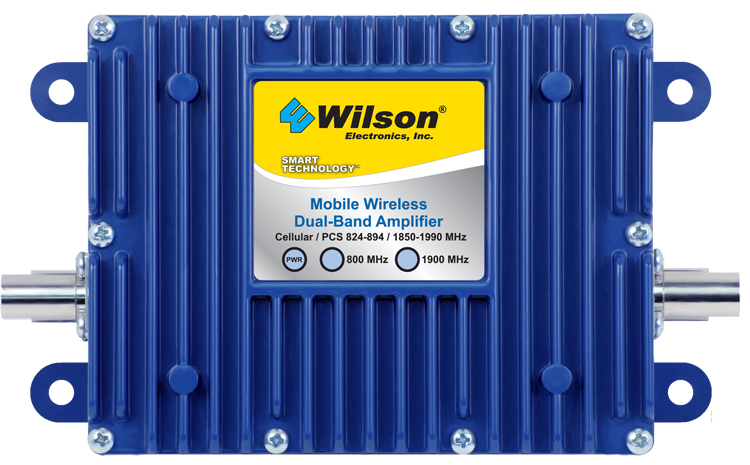

Dual-Band 800/1900MHz Mobile Amplifier

Works on CDMA, GSM & 3G networks. Can use in vehicles, boats and in-building

Frequency Range 824-894 MHz/
1850-1990 MHz
Amplifier Gain 40dB @ 800MHz
45dB @ 1900MHz Info
Max Output Power 35dBm
Max RF 35dBm Uplink &
10dBm Downlink
Noise Figure 3dB nominal
Gain Flatness +/- 2dB
Isolation > 90dB (uplink/ downlink)
Input impedance 50Ω
Size(inches) 4.5"x3.5"x1.25"
Weight 1.03lb
Cable/ Connector FME-Male (cable sold separately)
Power Supply 6V, 3A max

Top

Buy 801201

Install Guide

cellular amplifier power brick

6V AC/DC

Drawings


  Top




Contact us to discuss your application. Our experienced team will custom-build your cellular signal improvement solution using. RFWEL is a Licensed Low-Voltage Wireless Communication contractor (Arizona ROC#253407) should you need deployment assistance.



Buy Long Range Wireless Bridging Radios

  SCADA/M2M Hardware using cellular data backhaul
